1 System Overview
MTS system is a tool that assists elevator installation and maintenance work through computers. It provides a series of effective query and diagnostic functions to make installation and maintenance work more convenient and faster. This system consists of Maintenance Tools Interface (hereinafter referred to as MTI), USB cable, parallel cable, general network cable, cross network cable, RS232, RS422 serial cable, CAN communication cable and portable computer and related software. The system is valid for 90 days and needs to be re-registered after expiration.
2 Configuration and Installation
2.1 Portable Computer Configuration
In order to ensure the normal operation of the program, it is recommended that the portable computer used adopts the following configuration:
CPU: INTEL PENTIUM III 550MHz or above
Memory: 128MB or above
Hard disk: no less than 50M usable hard disk space.
Display resolution: no less than 1024×768
USB: at least 1
Operating system: Windows XP, win7 (32-bit/64-bit)
2.2 Installation
2.2.1 Preparation

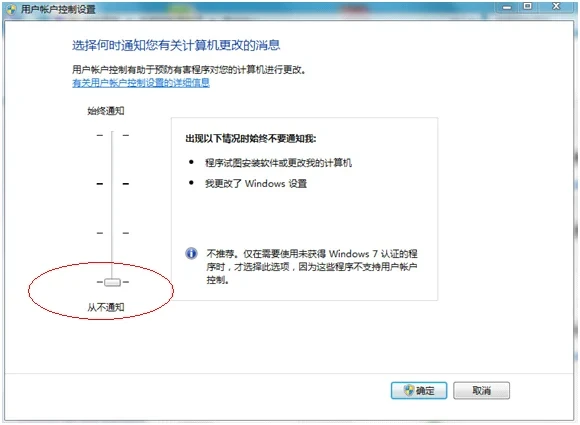

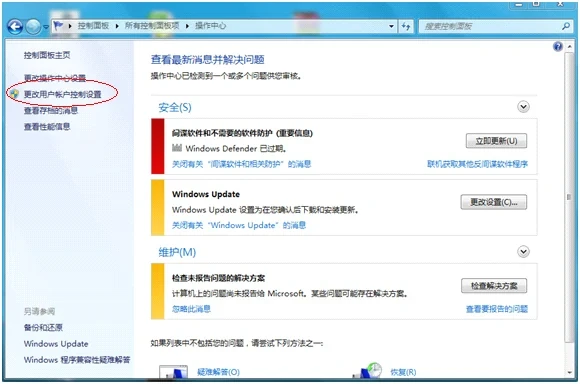

Note: When using MTS in Win7 system, you need to go to [Control Panel - Operation Center - Change User Account Control Settings], set it to "Never notify" (as shown in Figures 2-1, 2-2, and 2-3), and then restart the computer.
Figure 2-1
Figure 2-2
Figure 2-3
2.2.2 Obtaining the registration code

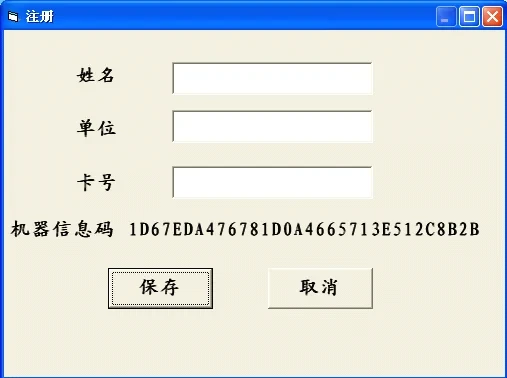

The installer must first execute the HostInfo.exe file and enter the name, company, and card number in the registration window.
Press the Save key to save all information in a document selected by the installer. Send the above document to the MTS software administrator mts@smec-cn.com, and the installer will receive a 48-digit registration code. This registration code is used as the installation password. (See Figure 2-4)
Figure 2-4
2.2.3 Install USB driver
First generation MTI card:
First, connect MTI and PC with USB cable, and turn RSW of MTI to "0", and cross-connect pins 2 and 6 of MTI serial port. Make sure the WDT light of MTI card is always on. Then, according to the system installation prompt, select WIN98WIN2K or WINXP directory in the DRIVER directory of the installation disk according to the actual operating system. After the installation is complete, the USB light in the upper right corner of MTI card is always on. Click the safe hardware removal icon in the lower right corner of PC, and Shanghai Mitsubishi MTI can be seen. (See Figure 2-5)
Figure 2-5
Second generation MTI card:

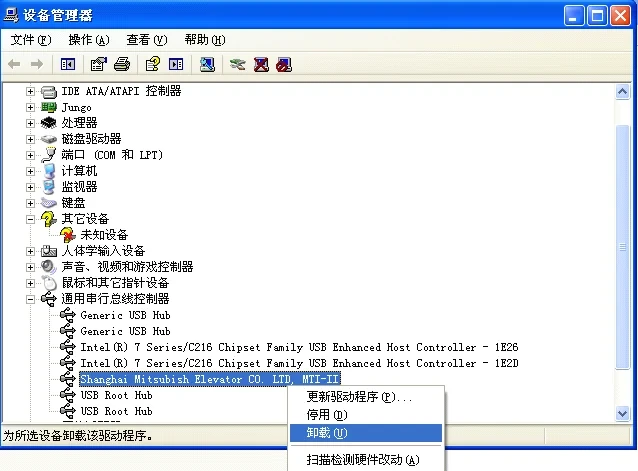

First, rotate SW1 and SW2 of MTI-II to 0, and then use a USB cable to connect MTI and PC. If you have installed the second generation MTI card driver of MTS2.2 before, first find Shanghai Mitsubishi Elevator CO.LTD, MTI-II in Device Manager - Universal Serial Bus Controllers and uninstall it, as shown in Figure 2-6.
Figure 2-6

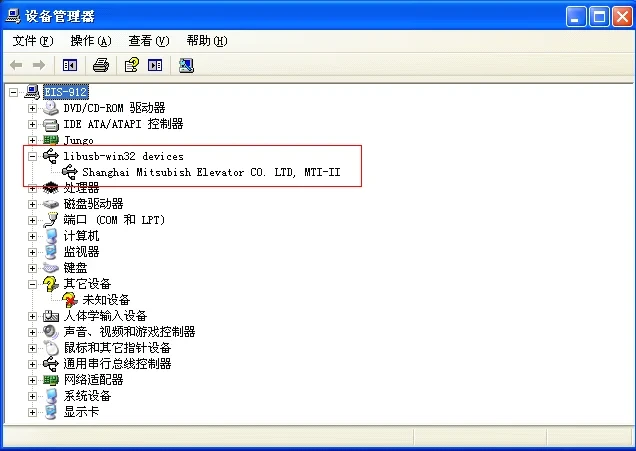

Then search for the .inf file containing "Shanghai Mitsubish Elevator CO. LTD, MTI-II" in the C:\Windows\Inf directory and delete it. (Otherwise, the system cannot install the new driver). Then, according to the system installation prompt, select the DRIVER directory of the installation disk to install. After the installation is complete, Shanghai Mitsubishi Elevator CO.LTD, MTI II can be seen in System Properties - Hardware - Device Manager - libusb-win32 devices. (See Figure 2-7)
Figure 2-7
2.2.4 Install the PC program of MTS-II
(The following graphical interfaces are all taken from WINXP. The installation interface of WIN7 will be slightly different. It is recommended to close all WINDOWS running programs before installing this program)
Installation steps:
Before installation, connect the PC and MTI card. The connection method is the same as installing the USB driver. Make sure the rotary switch is turned to 0.

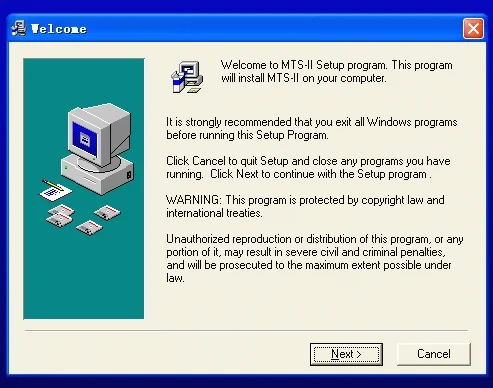

1) For the first installation, please install dotNetFx40_Full_x86_x64.exe first. For the second installation, please start directly from 8). Run MTS-II-Setup.exe and press NEXT in the Welcome window to go to the next step. (See Figure 2-7)
Figure 2-7

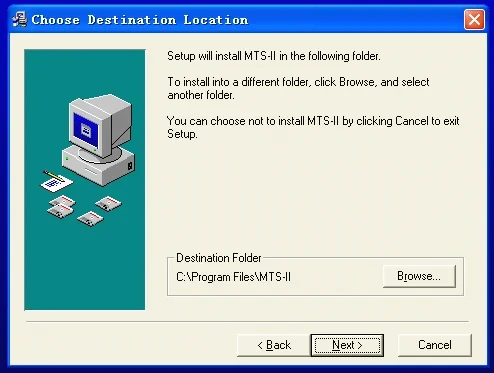

2) In the Choose Destination Location window, press the NEXT key to proceed to the next step;
or press the Browse key to select a folder and then press the NEXT key to proceed to the next step. (See Figure 2-8)
Figure 2-8

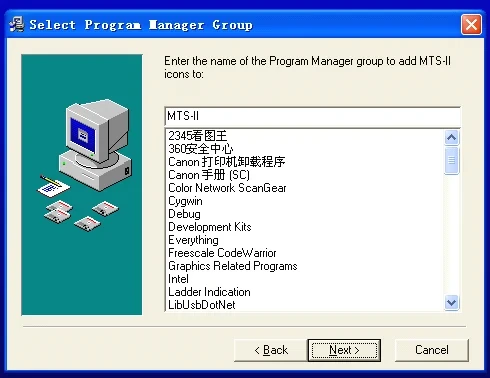

3) In the Select Program Manager Group window, press NEXT to proceed to the next step. (See Figure 2-9)
Figure 2-9

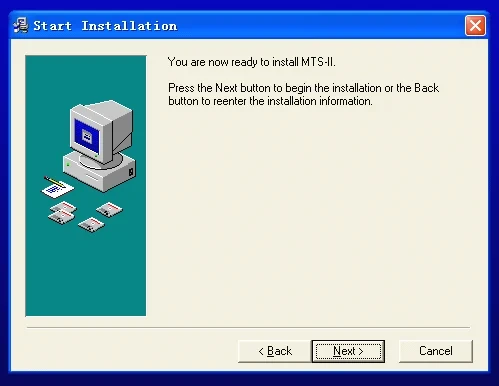

4) In the Start Installation window, press NEXT to start the installation. (See Figure 2-10)
Figure 2-10

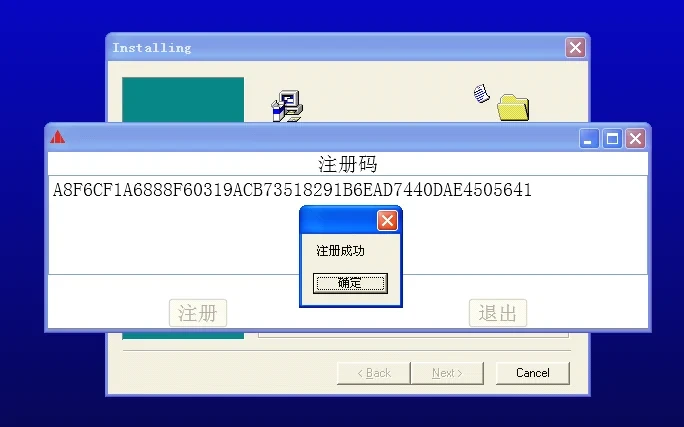

5) In the registration setting window, enter the 48-digit registration code and press the confirm key. If the registration code is correct, the "Registration Successful" message box will be displayed. (See Figure 2-11)
Figure 2-11

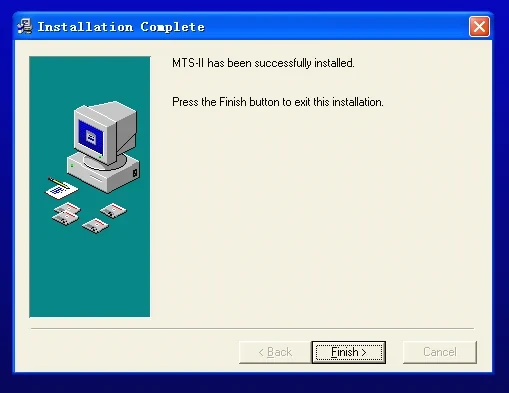

6) Installation is complete. See (Figure 2-12)
Figure 2-12

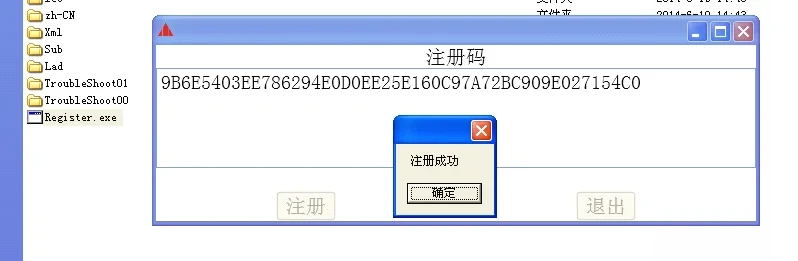

7) For the second installation, directly run Register.exe in the installation directory, enter the obtained registration code, and wait for the registration to succeed. See Figure 2-13.
Figure 2-13

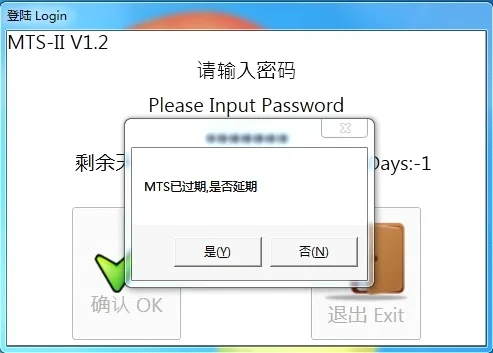

8) When the MTS-II expires for the first time, enter the correct password, click Confirm, and choose to extend the period for 3 days. See Figure 2-14.
Figure 2-14
