The 3300AP is a high-performance elevator system designed for mid-to-high-rise buildings, combining advanced control technology, energy efficiency, and reliable operation. This overview covers the main components, system architecture, and key features of the 3300AP platform.
🧩 System Components
1. The 3300 AP uses the following components:
-
-
Control Unit: Bionic5
-
ACVF: Vacon NXP (Biodyn 12125142 C BR)
-
Door Driver: Femmator Compact VVVF4+
-

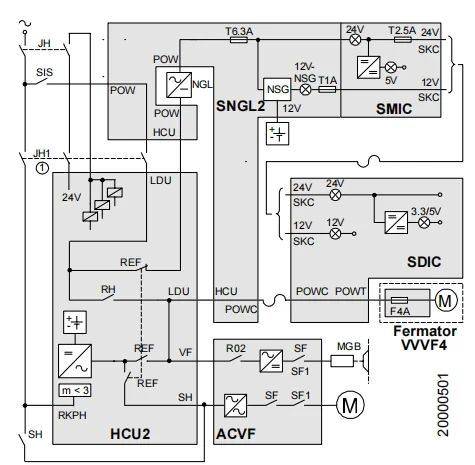

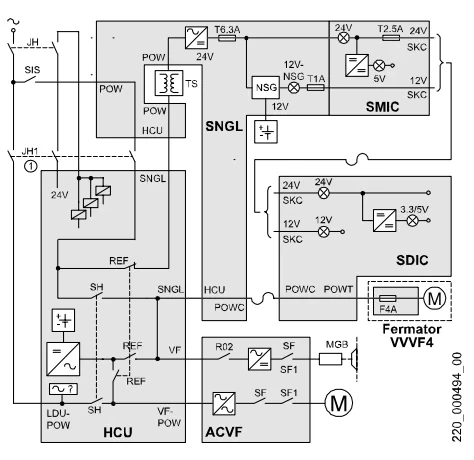

2. power supply

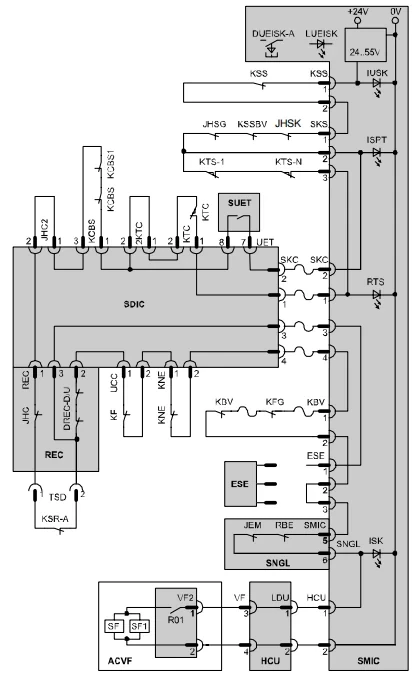

3. Safety circuit

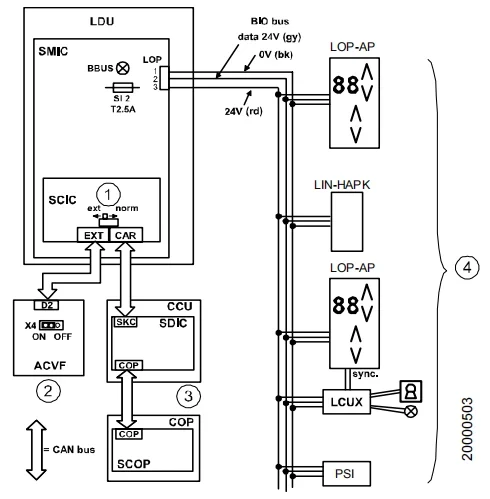

4. CAN bus system
CAN Bus Termination:
- Default position: "ext". If no component is connected to XCAN-EXT, set the switch to "Nomm".
- Jumper X4 must be in the left position (ON). This is only required when using the "older" Vacon NXP version (with option panel).
- The CAN bus is automatically terminated on SDIC or SCOP.
- BIO Bus on Bionic 5 System:
Pin 1: GND
Pin 2: Bus data (24V!)
Pin 3: 24V power supply for the indicator.
⚙️ Key Features
-
Auto-Learning Function
Menu 116 initiates hoistway self-learning for floor position and leveling accuracy. -
Multiple Operation Modes
-
Normal
-
Inspection (car top, machine room, in-car)
-
Fire service
-
Emergency power
-
Independent operation
-
Attendant (driver) mode
-
-
Remote Monitoring
Supports Schindler Remote Assistance (SRA) and real-time fault reporting. -
Configurable Travel Profiles
Adjustable acceleration, speed, and door timing via HMI menus.
